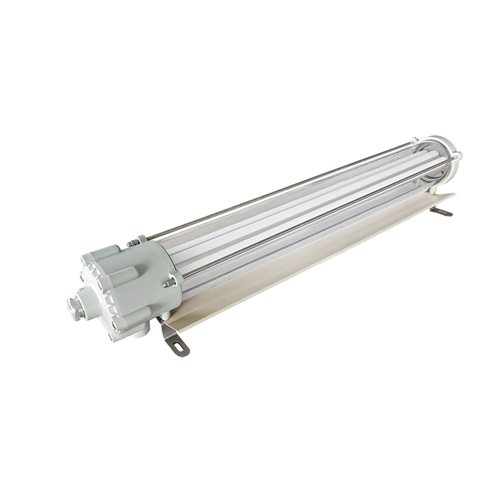

Flame Proof Led Linear Tube Light
Brand HUADING
Product origin CHINA
Delivery time 7-15 days
Supply capacity 10000/month
- High Lumen, excellent CRI, accurate CCT; flame proof led tube light
- Isolated LED compartment reduces temperature within driver housing;flame proof led linear light
- 50,000 hours long lifetime, 5 years warranty;flame proof tube light led
Flame proof led tube light
- Product Model: BHD51
- Wide voltage: 100-240VAC
- Power factor: > 0.95
- THD (Total Harmonic Distortion): <20%
- Inrush current: <60
Flame proof led linear light technical data：
Rated power:10W/20W40W/60W
Protection class: IP66
Temp. Class: T6
Color temperature.: 2700~6500k(optional)
CRI: >80
Ambient operating temperature: -30°C to +50°C
Certificate: ATEX&IECEx ,CE,Rohs
| Rated power | 10/20/40/60W | Power factor | >0.95 |
| Rated voltage | AC 220V 50/60Hz | Ambient temperature | -30~50ºC |
| Degree of protection | IP66 | Type of light source | led |
| Beam angle | 100/115° | Correlated color temperature | 2700-6500K |
| Number of lamp beads | 208pcs | Color rendering index | ≥70RA |
| Lamp specification | Lumileds | Light source life | >100000h |
| Anti-corrosion grade | WF2 | Explosion-proof grade | Exd IIC T6 Gb |
| Light source light effect | 110-120Lm/w | Executive standard | GB3836.1,GB3836.2 |
| Product Size | 60/90/120cm Length | Product weight | 3/4/5KG |
Application:
Suitable for IIA, IIB, IIC explosive gas environment and various flammable and explosive places. Mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship, stations, large facilities, venues and other places,flame proof tube light led
