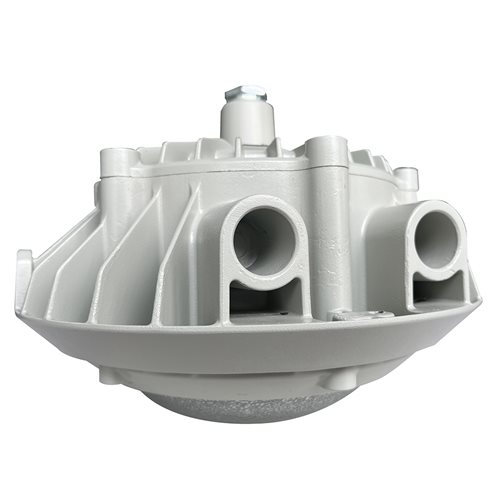

Explosion Proof Atex LED Floodlight
Brand HUADING
Product origin CHINA
Delivery time 7-15 days
Supply capacity 10000/month
The explosion proof floodlight housing is good thermal conductivity
Atex led floodlight Integrated cooling design, elegant, efficient.
Led atex floodlight Streamline design,more beautiful appearance,no accumulation.
Explosion proof floodlight for Zone 1 with ATEX certificate
- Product Model: BHD8630
- Housing: Die-cast aluminium alloy housing fitted with cooling fins for a better heat dissipation
- Glass: Tempered glass cover can bear 4J impact.
- Lamp efficient: >110lm/w
- Wide voltage: 100-305VAC
- Surge Protection:6KV
- Power factor: > 0.95
- THD (Total Harmonic Distortion): <20%
- Inrush current: <65
Technical data：
Rated power:50W/60W/70W/80W/90W/100W
Protection class: IP66
Temp. Class: T6
Color temperature.: 2700~6500k(optional)
Color Rendering Index(Ra): >80
Working temperature: -40°C to +50°C
Certificate: ATEX&IECEx ,CE,Rohs
N.W: 5.5KG
Applications :Zone 1,2 &21,22
Class I, Divison 1,2 Class II, Division 1,2
| Rated Power | Lamp Luminous Efficiency | Luminous Flux | Beam angle |
|---|---|---|---|
| 50W | 110lm/W | 5500lm | 120° |
| 60W | 110lm/W | 6600lm | 120° |
| 70W | 110lm/W | 7700lm | 120° |
| 80W | 110lm/W | 8800lm | 120° |
| 90W | 110lm/W | 9900lm | 120° |
| 100W | 110lm/W | 11000lm | 120° |
The atex floodlight housing is made of die-casting aluminium,good thermal conductivity, firm and durable.
The atex led floodlight angle of the mounting bracket is adjustable for easy installation.
The atex floodlight Integrated cooling design, elegant, efficient.
Led atex floodlight with streamline design,more beautiful appearance,no accumulation.
Atex led floodlight with professional outdoor painting,stainless steel components, with excellent performance in anti-corrsion and anti-rusting,widely used in different environment.
The led atex floodlight light transmittance up to 94%,easy to improve in the future.
