ATEX Certified Flameproof Linear Tube Light
Brand HUADING
Product origin CHINA
Delivery time 7-15 days
Supply capacity 10000/month
Flameproof light are designed for use in hazardous locations where atmospheres may be exposed to the release of flammable gases or vapors, combustible dusts or ignitable fibers or flyings in explosive concentrations.

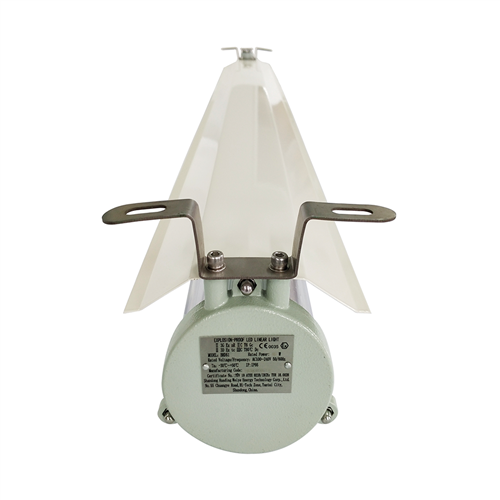

flameproof led tube light
Flameproof linear light /flameproof light
Product Model: BHD51
Rated power:10W/20W40W/60W
Protection class: IP66
Temp. Class: T6
Color temperature.: 2700~6500k(optional)
Certificate: ATEX&IECEx ,CE,Rohs
Applications :Zone 1,2 &21,22 Class I, Divison 1,2 Class II, Division 1,2
| Rated power | 10/20/40/60W | Power factor | >0.95 |
| Rated voltage | AC 220V 50/60Hz | Ambient temperature | -30~50ºC |
| Degree of protection | IP66 | Type of light source | led |
| Beam angle | 100/115° | Correlated color temperature | 2700-6500K |
| Number of lamp beads | 208pcs | Color rendering index | ≥70RA |
| Lamp specification | Lumileds | Light source life | >100000h |
| Anti-corrosion grade | WF2 | Explosion-proof grade | Exd IIC T6 Gb |
| Light source light effect | 110-120Lm/w | Executive standard | GB3836.1,GB3836.2 |
| Product Size | 60/90/120cm Length | Product weight | 3/4/5KG |
Application areas-flameproof led tube light
Working in potentially explosive areas require explosion proof lighting solutions. We have taken advantage of these multiple technology developments to design a new range of flameproof lights providing powerful illumination, extreme durability, versatile functionality, and very long lifetime.
Flameproof linear light are approved and certified according to the latest European ATEX directive.
