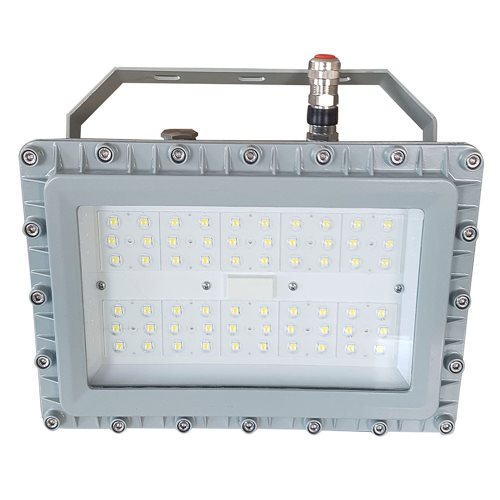

Zone 1 Flame Proof LED Flood Lamp
Brand HUADING
Product origin CHINA
Delivery time 7-15 days
Supply capacity 10000/month
1.Flame proof flood lamp multiple seals for protection against leakage in stormy conditions.
2.Flame proof lamp The large surface area of the radiator increases the speed of airflow to the radiator and improves the efficiency of heat transfer.
Flame proof flood lamp
- BHD 3500 atex led lamp with the die-cast aluminum alloy housing, can reach WF2 anti-corrosion grade
- The glass cover of flame proof lamp is made of tempered glass, can bear 4J impact.
- Flame proof lamp luminous efficiency is 120lm/w.
- The input voltage: 100-305VAC/50-60HZ
- Rated power:30W/40W/50W/60W/70W
- Protection class: IP66
- Temp. Class: T6
- Color temperature.: 2700~6500k(optional)
- CRI: >80
- Ambient operating temperature: -45°C to +45°C
- Certificate: ATEX&IECEx ,CE,Rohs
- N.W: 3.5KG
| Model | Watt | Light efficient | Lumen | Ambient temp. | Beam angle | IP Rating |
| BHD3500 | 30W | 120lm/w | 3600LM | -45℃~45℃ | 120° | IP66 |
| 40W | 120lm/w | 4800LM | ||||
| 50W | 120lm/w | 6000LM | ||||
| 60W | 120lm/w | 7200LM | ||||
| 70W | 120lm/w | 8400LM |
Features:
1.Flame proof flood lamp multiple seals for protection against leakage in stormy conditions;
2.The large surface area of the radiator increases the speed of airflow to the radiator and improves the efficiency of heat transfer;
3.Atex led lamp adopt the first-line brand PHILIP LED light-emitting chip, which has high brightness and highlight efficiency, and the chip light efficiencyis > 120 lm/W;
4.Atex led lamp The performance is stable and the average service life ofthe chip is as long as 100,000 hours;
5.Atex led lamp SMT array patch technology is adopted, which has high heat conduction efficiency.
