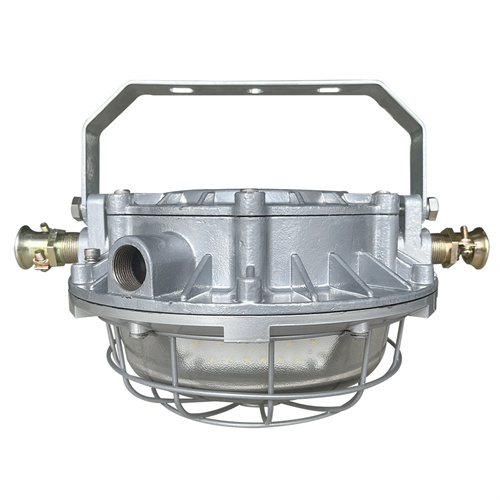

LED Explosion Proof Mining Lamps
Brand HUADING
Product origin CHINA
Delivery time 7-15 days
Supply capacity 10000/month
1.LED explosion proof lamps applied to underground mining working area, tunnel where hazardous gas and dust.
2.Mining lamp explosion proof are made of the steel material housing and tempered glass cover.
lamp explosion proof
Explosion proof mining lamps
- Osram led source, high lumen output over 110~120lm/W.
-High efficient led light source distribution,anti-glare.
- Steel material housing ,high intensity,can endure 20J impact.
- Own design and produced LED drivers are provide reliable operation in harsh environments.
- Capable to work on extreme high and low temperature -20ºC~+40ºC keep good performance.
- IP66 and high corrosion resistance
- Various installation methods.
| Model | Rated Watt | Light efficient | Ambient temp. | Beam angle | IP Rating |
| DGC/CGS | 25W | 110lm/w | -30℃~50℃ | 120° | IP66 |
| 31W | |||||
| 41W | |||||
| 42W | |||||
| 52W | |||||
| 54W | |||||
| 63W |
Application:
Explosion proof mining lamps has a good explosion-proof function, suitable for explosive gas environment, and various flammable and explosive places.
Features:
1. Mining lamp explosion proof adopt imported LED light source, the average service life is up to100,000 hours, the power supply adopts wide voltage processing, which can realize constant current output and has short circuit and over-voltage protection, greatly improves the service life of the lamp.
2. The led explosion proof lamps radiator adopts polymer nano-materials, which are beneficial to heat radiation. which greatly guarantees the service life of the chip and power supply.
