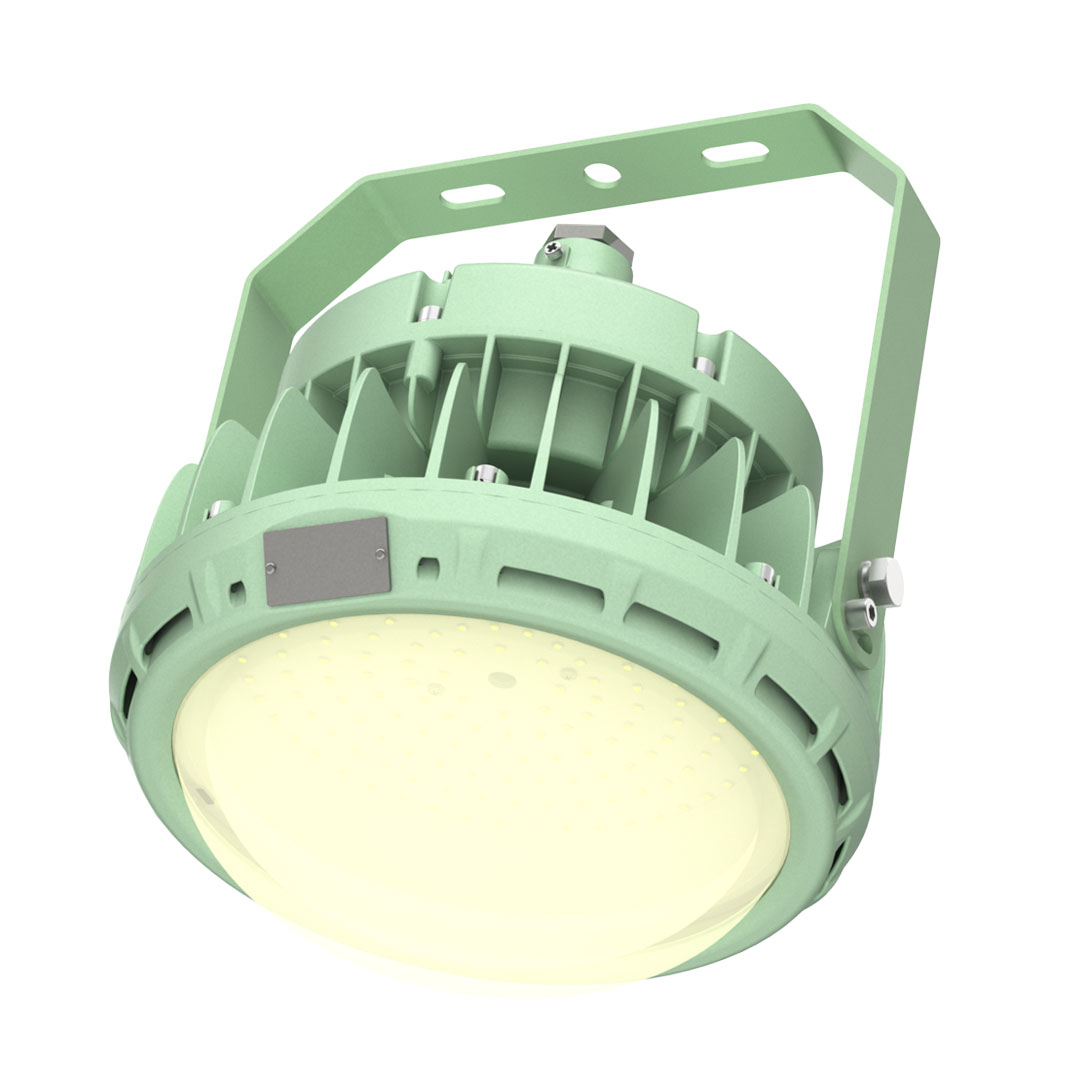

Explosion Proof High Bay LED Lighting Fixture
Brand HUADING
Product origin CHINA
Delivery time 7-25 days
Supply capacity 100000/month
The light sourcing chamber, the driver chamber, the wiring chamber are seperated. which is prolong the lifetime of the light, and easy for maintaince.
Explosion proof lighting fixture,explosion proof LED lighting
Explosion proof high bay lighting
- Product Model: BHD3100
- Body: Low copper content aluminium alloy fitted with cooling fins for better heat dissipation
- Glass face: Shock and temperature resistant tempered glass sealed with aluminium ring
- Lamp efficient: >120lm/w
- Wide voltage: 100-305VAC
- Surge Protection:6KV
- Power factor: > 0.95
- THD (Total Harmonic Distortion): <20%
- Inrush current: <65
technical data：
Rated power:50W/60W/70W/80W/90W/100W
Protection class: IP66
Temp. Class: T6
Color temperature.: 2700~6500k(optional)
CRI: >80
Ambient operating temperature: -45°C to +45°C
Certificate: ATEX&IECEx ,CE,Rohs
N.W: 6KG
Applications :Zone 1,2 &21,22
Class I, Divison 1,2 Class II, Divison 1,2
warranty: 5 years
| Model | Watt | Light efficient | Lumen | Ambient temp. | Beam angle | IP Rating |
| BHD3100 | 50W | 120lm/w | 6000lm | -45℃~45℃ | 30°/60°/90°/120° | IP66 |
| 60W | 120lm/w | 7200lm | ||||
| 70W | 120lm/w | 8400lm | ||||
| 80W | 120lm/w | 9600lm | ||||
| 90W | 120lm/w | 10800lm | ||||
| 100W | 120lm/w | 12000lm |
Features:
1.Zone 1&2, Zone 21&22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
4. Isolated LED compartment reduces temperature within driver housing
5. Dense cooling fins design enhances airflow for greater heat dissipation fixture.
6. Applications:explosion proof high bay lighting,explosion proof lighting fixture,explosion proof LED lighting
